基本资料

型号编码

0194690700

型号全称

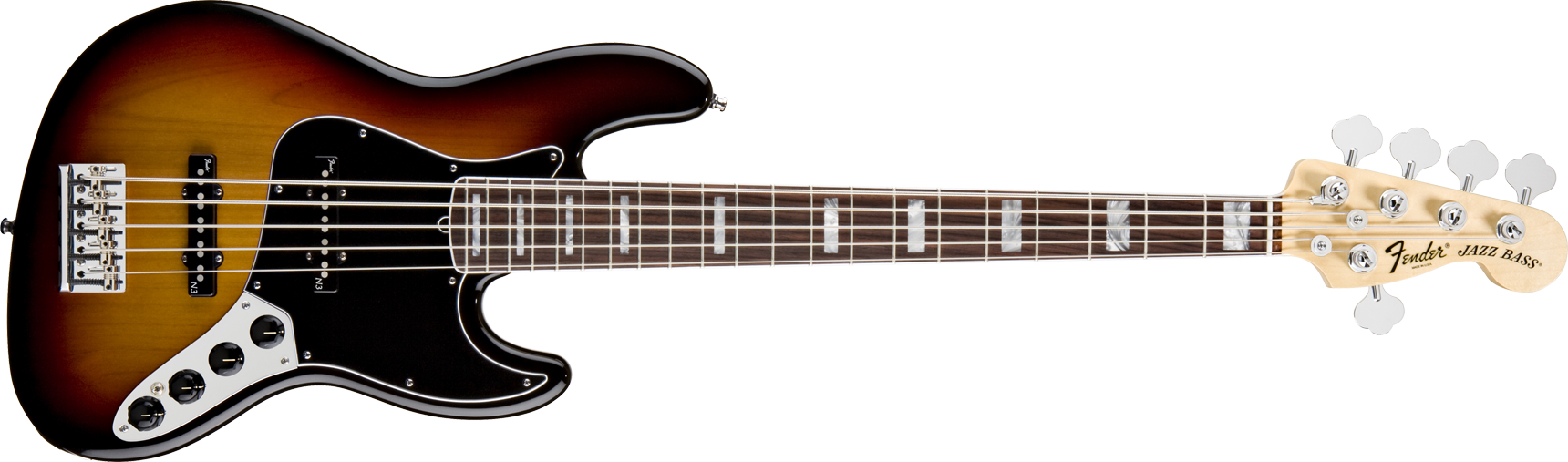

American Deluxe Jazz Bass V (Five String)

系列

American Deluxe

颜色

3-Color Sunburst

琴身

琴身材料

Select Alder

琴身漆面

Urethane

琴身轮廓

Jazz Bass

琴身包边

琴颈

琴颈材料

Maple

琴颈漆面

Gloss Urethane Front, Satin Urethane Back

琴颈轮廓

Asymmetrical "C"

有效弦长

34" (864 mm)

琴颈包边

Bound Fingerboard

指板

Rosewood

指板半径

9.5"-14" Compound Radius (241 mm-355.6 mm)

品数

21

品丝规格

Medium Jumbo

弦枕

Bone

弦枕宽度

1.875" (47.6 mm)

品记

Black or White Pearloid Block

琴颈调节杆

Posiflex Graphite Neck Support Rods

调节杆螺母

3/16" Hex Adjustment

琴头

琴颈金属板

5-Bolt Asymmetrical

电路系统

琴桥拾音器

Noiseless N3 Single-Coil Jazz Bass

琴颈拾音器

Noiseless N3 Single-Coil Jazz Bass

中间拾音器

控制系统

Master Volume, Pan Pot (Pickup Selector), Treble Boost/Cut, Midrange Boost/Cut, Bass Boost/Cut, Active/Passive Mini Toggle

拾音器切换档位

Pan Pot

拾音器配置

SS

特殊电路系统

Active/Passive Mini-Toggle Switch

硬件

琴桥

4-Saddle High-Mass Vintage (String-Through-Body or Topload)

硬件表面

Chrome

弦钮

Fender Lightweight Vintage-Style Keys with Tapered Shafts

护板

3-Ply Black

档位帽

控制旋钮

Black Plastic

其它

琴弦

Fender USA Bass 8250/5M, NPS, (.045, .065, .085, .110TW, .130TW Gauges)

特点

New N3 Noiseless Pickups, Improved electronics resulting in increased headroom, tighter low-end response, Active/passive toggle switch, Passive tone control for passive mode, Strong Arm string retainer, HMV bridge, Genuine bone nut, Tinted neck, Posiflex Graphite Neck Support Rods, 5-Bolt Neck Plate, Contoured Heel for Easier Access to Upper Frets, Rolled Fingerboard Edges, Highly Detailed Nut and Fret Work, Flat head screws on battery compartment (for easy changes with a coin or pick), Black pearl (or white pearloid) block inlays, Neck binding

内含配件

Cable, Strap, Strap Locks

配件

背带锁

Schaller Strap Lock System

擦琴布
